Cellular PVC Railings

Cellular PVC is the choice of upscale homeowners who want the look of wood to beautify their home and want to avoid the costly and time consuming maintenance that is required of wood rails.

The Benefits of Cellular PVC Railings

  • Looks Like Wood

    • Cellular PVC Railings take your house to the next level with matte finish railings that look and feel like wood.
    • In fact, the cellular PVC works like wood. It can be cut, milled and drilled just like wood.
    • It is a proven material that has been used in the construction for decades.
    • When combined with aluminum extrusion support it provides more structural integrity than vinyl PVC.
    • Increases curb appeal with crisp architectural details.
  • Low Maintenance and Extremely Durable

    • Like vinyl PVC rails, cellular PVC railings offer low maintenance and durability that far surpasses wood because the cellular PVC is impenetrable to moisture, UV resistant and impervious to insects and salt.
    • It will not fade, crack, warp, swell or split with changing temperatures.
    • It is the perfect material for upscale homes especially in seaside communities.
  • Paintable

    • Cellular PVC railings can be painted with colors that have a low light refractive value of greater than 55.
    • The material does not absorb moisture, so the paint creates a super strong bond and will not peel.
    • Paint strokes on the rails make it indistinguishable from painted wood.
  • Environmentally Friendly

    • Cellular PVC is green. It is not a wood product so no trees are cut down to produce it and the material used has virtually no environmental impact.
  • We carry four lines of Intex Cellular PVC Railings:

    • Liberty Extruded and Routed Rails
    • Hampton Extruded Rails
    • Dartmouth Extruded Rails
    • Nautilus Milled Rails
    • Get inspired. Visit our Inspiration Gallery

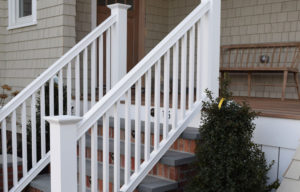

LIBERTY CELLULAR PVC RAILINGS

A unique routed rail system with a graspable option. Liberty rails are pre-routed, which decreases installation time and labor cost.

RS60350

    • Available in 6′, 8′, and 10′ lengths for level and radius runs
    • Stair Sections Available in 6′, 8′, and 10′
    • Available in 36″ or 42″ heights
    • 3-1/2″ Top Rail Width
    • 1-1/4″ Square Balusters

Cellular PVC Liberty Rails

Cellular PVC Liberty Rails

RS60275

      • Available in 6′, 8′, and 10′ lengths for level and radius runs
      • Stair Sections Available in 6′, 8′, and 10′
      • Available in 36″ or 42″ heights
      • 2-3/4″ Top Rail Width
      • 1-1/4″ Square Balusters
      • Graspable IRC Code Compliant Top Rail

Cellular PVC Rails Liberty

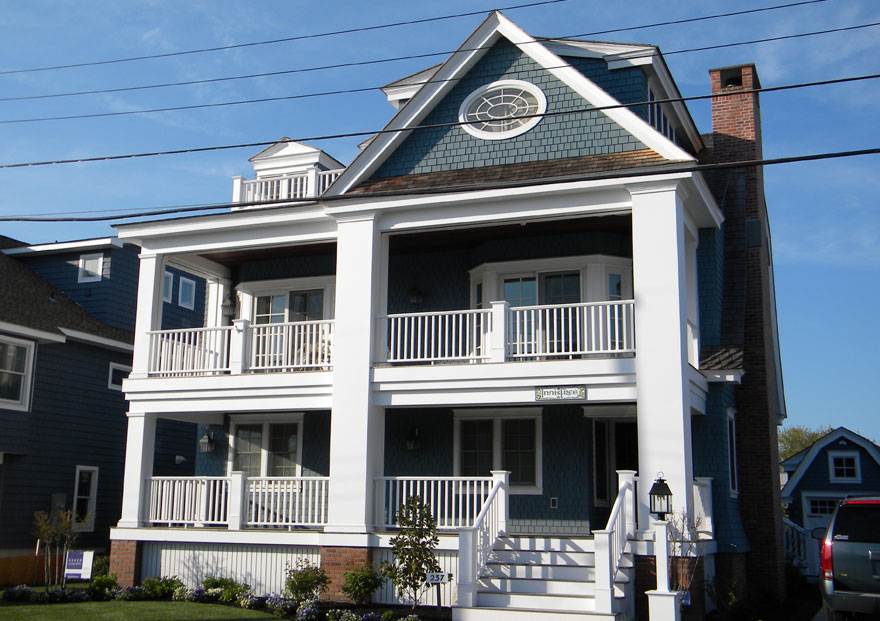

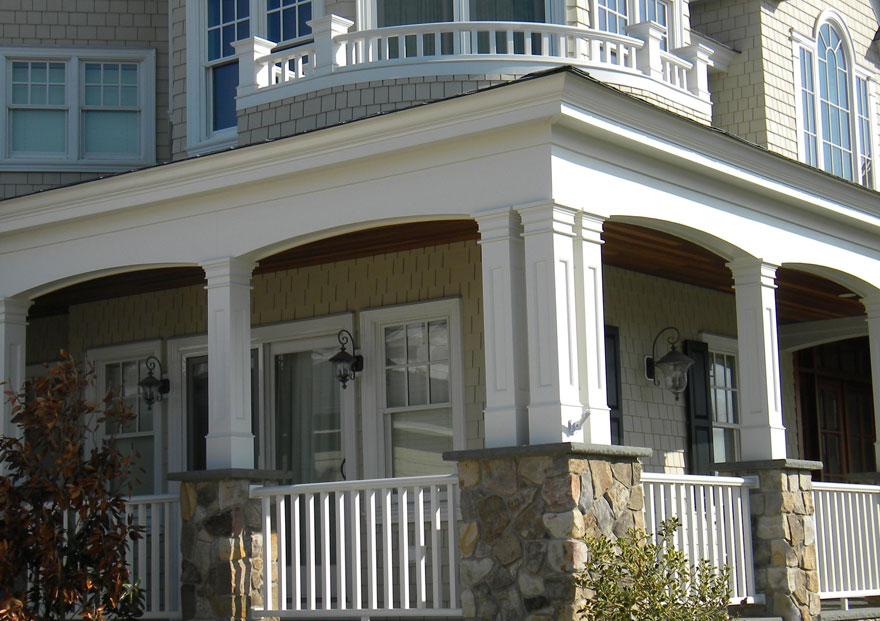

HAMPTON CELLULAR PVC RAILINGS

The Hampton Extruded Rail System is an economical rail solution with performance superior to composite railing.

HAMPTON FLAT

RS40350F

  • Fully flat top rail; 1-7/8″ height
  • Available in 6′, 8′, and 10′ lengths for level and radius runs
  • Stair Sections Available in 6′ and 8′
  • Available in 36″ or 42″ heights
  • 3-1/2″ Top Rail Width
  • 1-1/4″ Square Balusters
  • Available with 4″ glass balusters – Level only
  • Does not require paint, but can be painted

Cellular PVC Rails

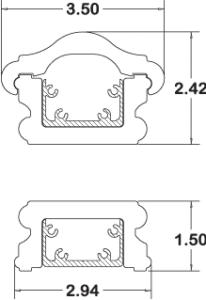

HAMPTON PEAKED

RS40350P

  • Peaked top rail; 2-7/16″ height
  • Available in 6′, 8′, and 10′ lengths for level and radius runs
  • Stair Sections Available in 6′ and 8′
  • Available in 36″ or 42″ heights
  • 3-1/2″ Top Rail Width
  • 1-1/4″ Square Balusters
  • Available with 4″ glass balusters – Level only
  • Does not require paint, but can be painted

MAHOGANY HAMPTON

Combines the sleek Hampton rail system with a smaller but stunning Phoenix Mahogany top rail.

        • Available in 6′, 8′, 10′, and 12′ lengths for level and radius runs. Please note 12′ lengths of this rail cannot be assembled without an additional mid-newel for support.
        • Stair Sections Available in 6′, 8′, and 10′
        • Available in 36″ or 42″ heights
        • 2-3/4″ Top Rail Width
        • 1-1/4″ Square Balusters
        • Mahogany top rail comes unfinished – You can stain it to match your front door or deck
        • Recommended to stain Mahogany Top Rail before weather exposure using an oil based stain

Cellular PVC Rails

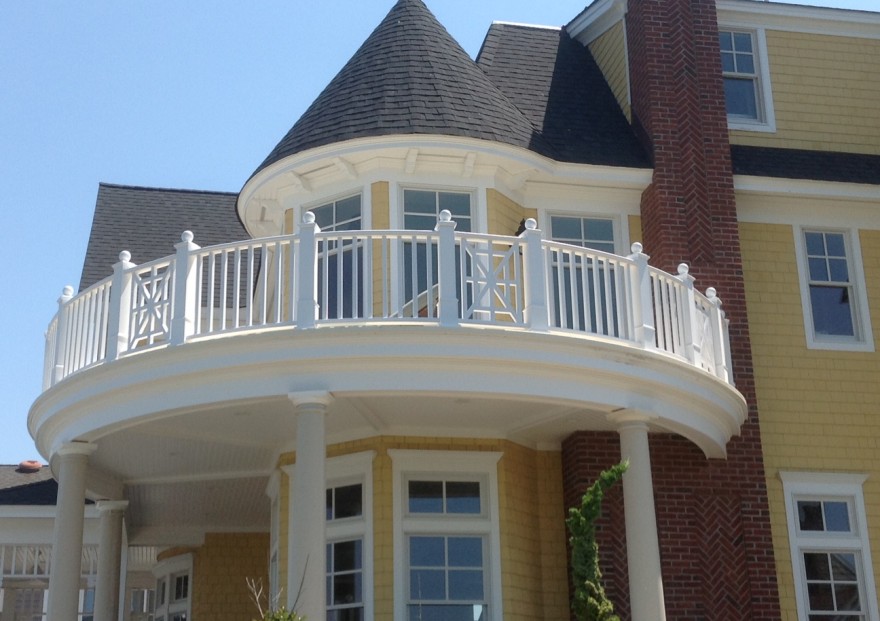

DARTMOUTH CELLULAR PVC RAILINGS

The Dartmouth Extruded Rail System features an elegant profile with modern characteristics. The Dartmouth System is pre-finished and carries a 10-year paint warranty.

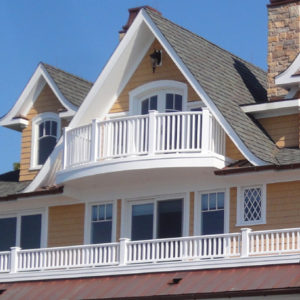

RS35350

  • Flat top rail
  • Available in 6′, 8′, 10′ and 12′ lengths for level and radius runs
  • Stair Sections Available in 6′, 8′, and 10′
  • Available in 36″ or 42″ heights
  • 3-1/2″ Top Rail Width
  • 1-1/2″ Square Balusters
  • Available with 4″ glass balusters
  • Available with full glass panel kits from other providers

Cellular PVC Dartmouth

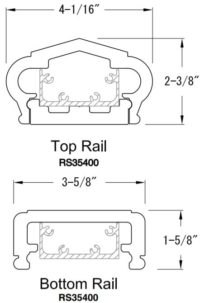

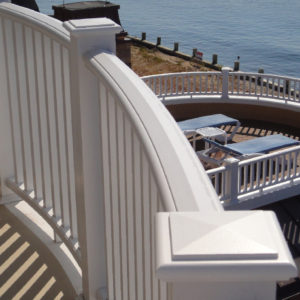

DARTMOUTH 400

RS35400

  • Peaked top rail
  • Available in 6′, 8′, 10′ and 12′ lengths for level and radius runs
  • Stair Sections Available in 6′, 8′, and 10′
  • Available in 36″ or 42″ heights
  • 4″ Top Rail Width
  • 1-1/2″ Square Balusters
  • Available with 4″ glass balusters
  • Available with full glass panel kits from other providers

MAHOGANY DARTMOUTH

Combines the elegance of the Dartmouth rail system with the beauty and warmth of our traditional Phoenix Mahogany top rail.

    • Available in 6′, 8′, 10′, and 12′ lengths for level and radius runs
    • Stair Sections Available in 6′, 8′, and 10′
    • Available in 36″ or 42″ heights
    • 3-5/8″ Top Rail Width
    • 1-1/2″ Square Balusters
    • Mahogany top rail comes unfinished – You can stain it to match your front door or deck
    • Recommended to stain Mahogany Top Rail before weather exposure using an oil based stain

Cellular PVC Railings

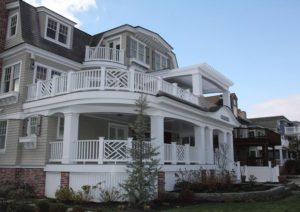

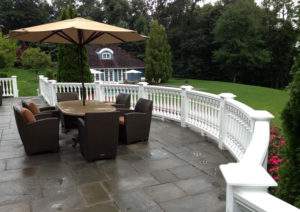

NAUTILUS CELLULAR PVC RAILINGS

Nautilus rails feature stately old world design and time honored detailing, constructed by true millwork craftsmen. They are traditional upscale high-end rails with multiple options.

    • Available in 6′, 8′, and 10′ lengths for level and radius runs
    • Available with 3-3/4″, 5″, 6″, 7″, or 8″ wide top rail
    • Gooseneck top rail available
    • 1-1/2″ to 5″ balusters
    • Squared, Turned, or Chamfered balusters
    • Requires painting with Cellular PVC approved paint since rail is milled.

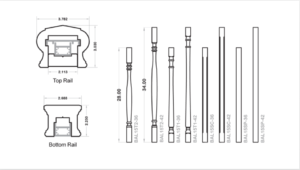

RS10375

Cellular PVC Rails

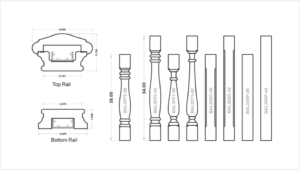

RS10600

Cellular PVC Rails

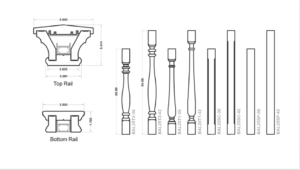

RS20500

Cellular PVC Rails

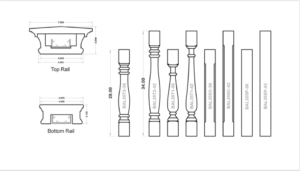

RS20700

Cellular PVC Rails

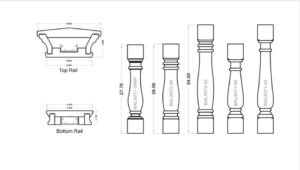

RS20800

Cellular PVC Rails

Cellular PVC Rails

Cellular PVC Rails


1 – 1/2″ Round Secondary Handrails

Round Secondary Handrail is a simple and functional attachment for any Phoenix PVC or Aluminum system. It is ADA (Americans with Disabilities Act) Code Compliant for graspability and offers both safety and comfort while moving up or down stairwells or ramps.

  • Round Handrail is 1-1/2” in diameter (outside dimension)
  • Round Handrails can mount right into railing posts or a nearby wall
    • Alternatively, each handrail section can terminate in a smooth, rounded end loop
  • Spans of 80”, 104” or 120” are available
    • Spans can be even longer through the use of an internal joiner
  • Mounting brackets required every 5 feet
  • External joint rings are used at all connections to conceal the continuous aluminum interior
  • White Vinyl and Black Aluminum are stocked
    • Almond Vinyl, White Aluminum, and Bronze Aluminum can be special ordered
Phoenix Secondary Hand Rails
